1.25 kW ACDCX Hybrid Non-Symmetric Grid Tied & Off-Grid Inverter (One Way Grid Tie) Allows AC or Other Appliance to Connect Directly To Solar and Use Grid for Backup


Image of acdcx grid tied hybrid inverter

Convert Any Air Conditioner to Solar Air Conditioner
~
Power Any AC Appliance Directly From Solar Panels
~
Use Grid Connection As Backup (Optional)
~
No Batteries Needed
For On or Off-Grid Use
~
120v Version Available

See Spec Sheet       Contact Us


ON-GRID:

Example #1: AC load is 800w, solar is producing >/= 800w, no power is pulled from grid.
Example #2: AC load is 700w, solar is producing 625w, 75w pulled from grid.
Example #3: (Night) AC load is 400w, solar is zero, 400w pulled from grid.

OFF-GRID:

The ACDCX can also be used without any grid connection (or when grid is connected but has power outage). In this example, an AC load can still be powered assuming enough solar power is available. If no grid is present and the AC load exceeds available solar power, the ACDCX will stop and periodically try to restart.

There is also a "Dual" ACDCX model that connects with up to eight (8) solar panels and offers up to 2.5 kW output. 120v model also available. Please contact us for details.

acdcs one way inverter

panesl guid acdcx

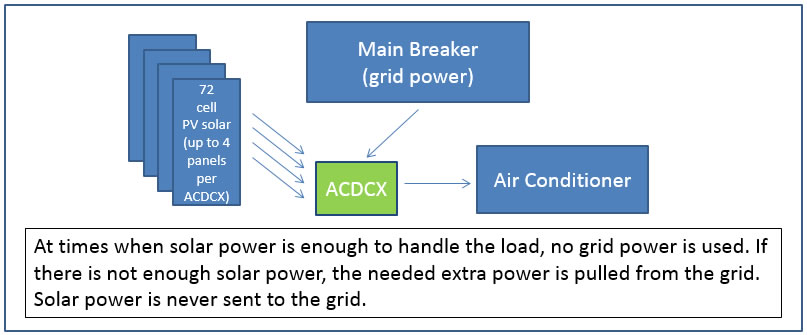

The ACDCX allows any 240v 60 Hz appliance or air conditioner to be powered directly by solar panels when enough solar power is available. Solar is always the primary source of power. If solar power is not strong enough to fully power the AC load, small amounts of power can be pulled from the mains power to supplement the solar power and operate the load.

MAKE SURE THE TOTAL LOAD AMPS, INCLUDING START-UP SURGE, IF ANY, IS CONSIDERED BEFORE SELECTING THIS PRODUCT

NOTE: 240v power is provided as true single phase L1+N. There is no 120v "leg". There is no L2. Please consult the manual and contact our technical support dept. with any questions.

No power is ever exported to the grid. No net-metering agreement or special meter needed.

UL1741 and IEEE1547 (E113426), CSA107.1, FCC Part 15 Class A
Outdoor Rated –NEMA 6 (IP67)
Complies with NEC 2014/2017 690.12 Rapid Shutdown
GFDI Built-In. See UL Certification
3-Year Limited Warranty
met listing UL 1741

See Spec Sheet       Contact Us

The ACDCX is an asymmetric hybrid one-way grid tied inverter that can use the grid as a backup as needed, but never sends power to the grid.

When grid is used as backup, only the actual amount of power shortfall (∆ between the AC load and solar) is pulled from the grid.

The ACDCX allows 240v appliances to be powered directly (and only) from solar, when solar power is strong enough.

Standard model ACDCX supports 60 Hz grid power of 220-240v.

Special Order:

208v models also available. 120v models are available. Dual (8-panel) 240v models are available. 50 Hz models are also available for export.

Designed for Chiltrix air to water heat pumps the ACDCX can work with any 240v 60Hz air conditioner, heat pump, or other appliance within the amperage rating, generally up to 4 tons, consult the RLA/LRA ratings of your unit.
